Beskrivning

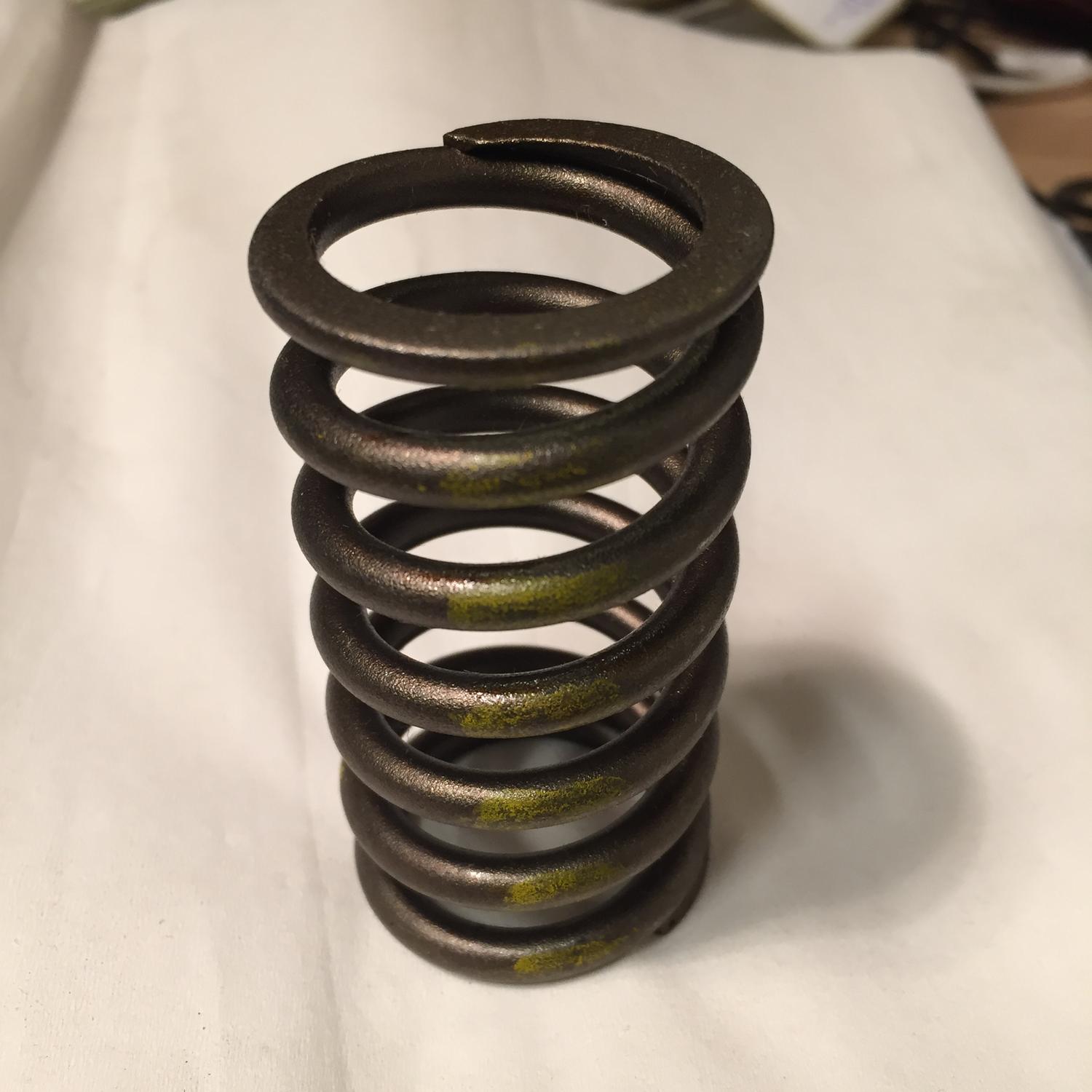

VENTILFJÄDER
PLYMOUTH 1958-79
DODGE 1958-79,
CHRYSLER 1958-79,
350-440cui
FEDERAL MOGUL VS673
OS Free Height (Inch): 2.5800
OS Free Height (MM): 65.5320
OS Max OD (Inch): 1.3900
OS Max OD (MM): 35.3060
OS Min Close (Inch): 1.8600
OS Min Close (MM): 47.2440
OS Min Close LBS: 125
OS Min ID (Inch): 1.0200
OS Min ID (MM): 25.9080
OS Min Open (Inch): 1.4300
OS Min Open (MM): 36.3220
OS Min Open LBS: 200
OS Solid Height (Inch): 1.3500
OS Solid Height (MM): 34.2900
OS Total Coils: 7.5
OS Wire Diameter (Inch): 0.1850
OS Wire Diameter (MM): 4.6990
Spring Configuration: (S) Single
