Beskrivning

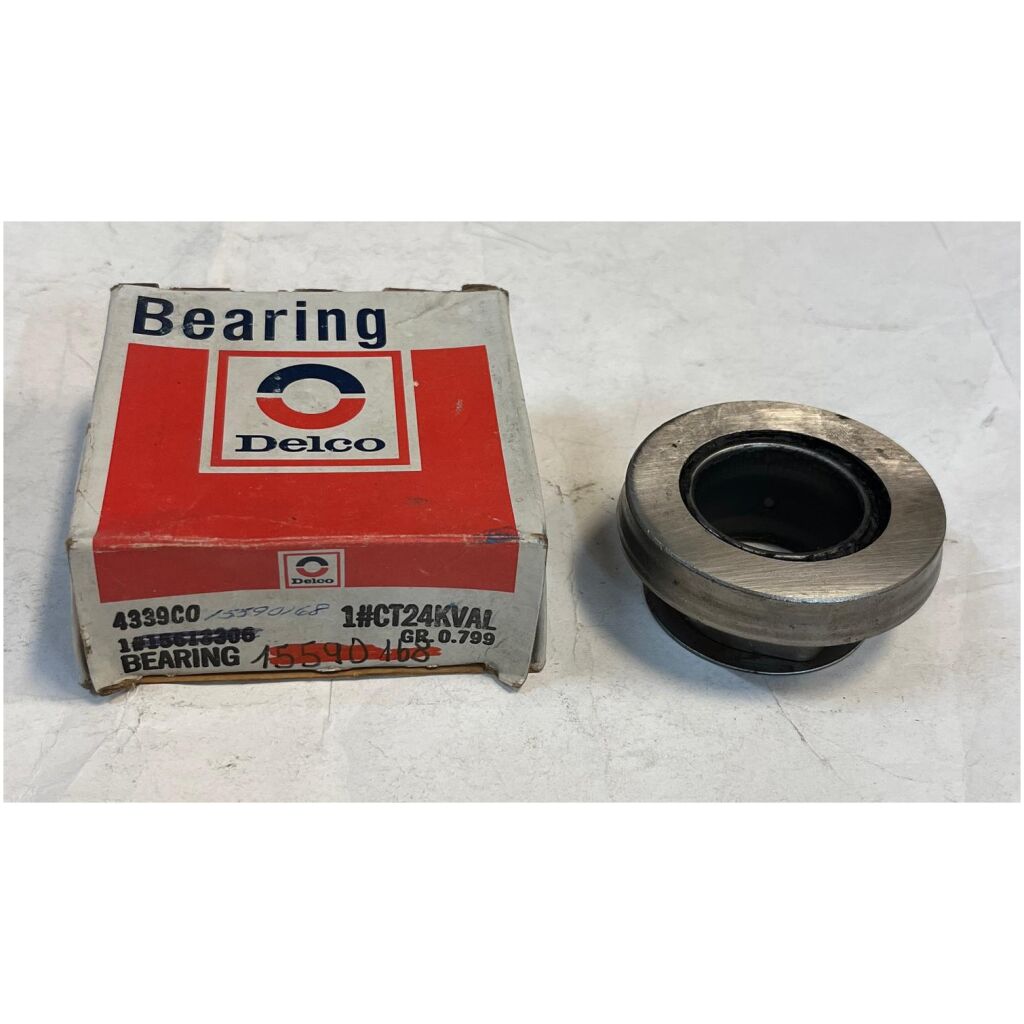

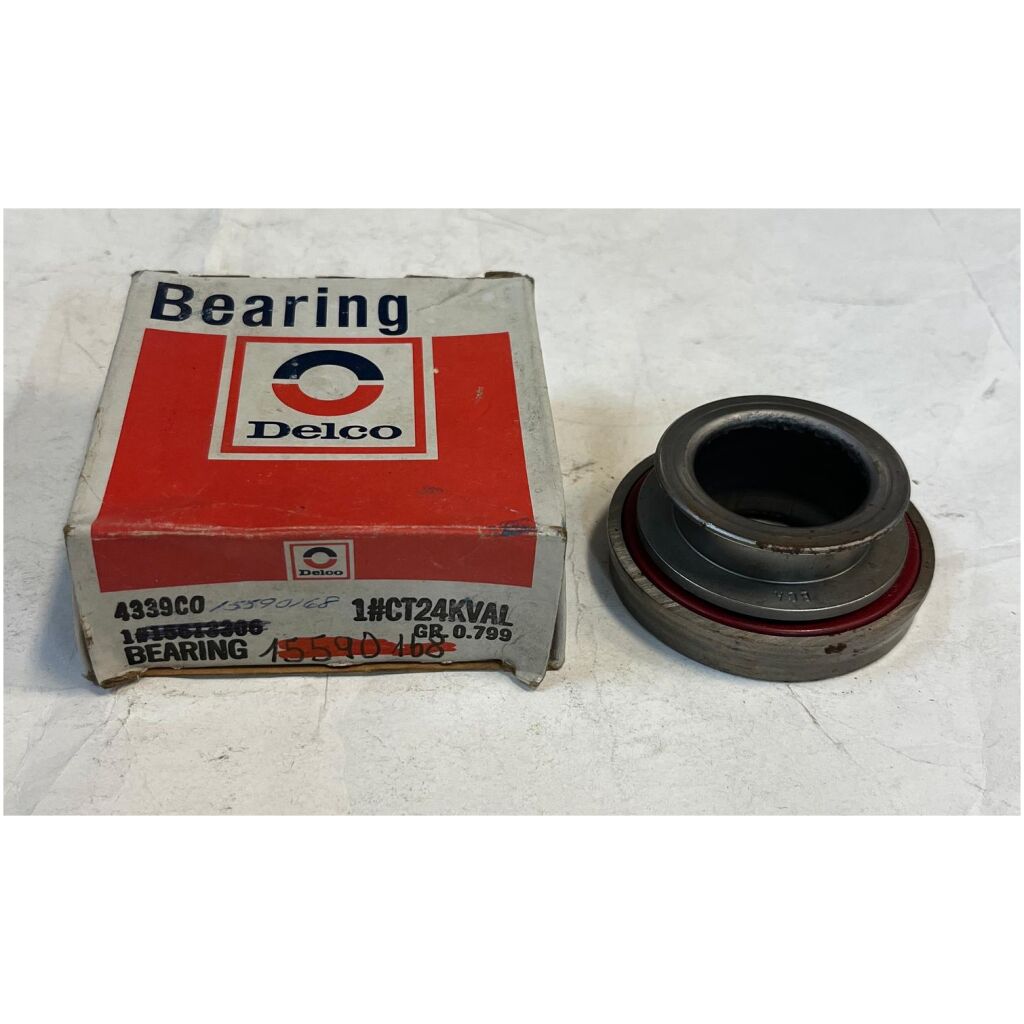

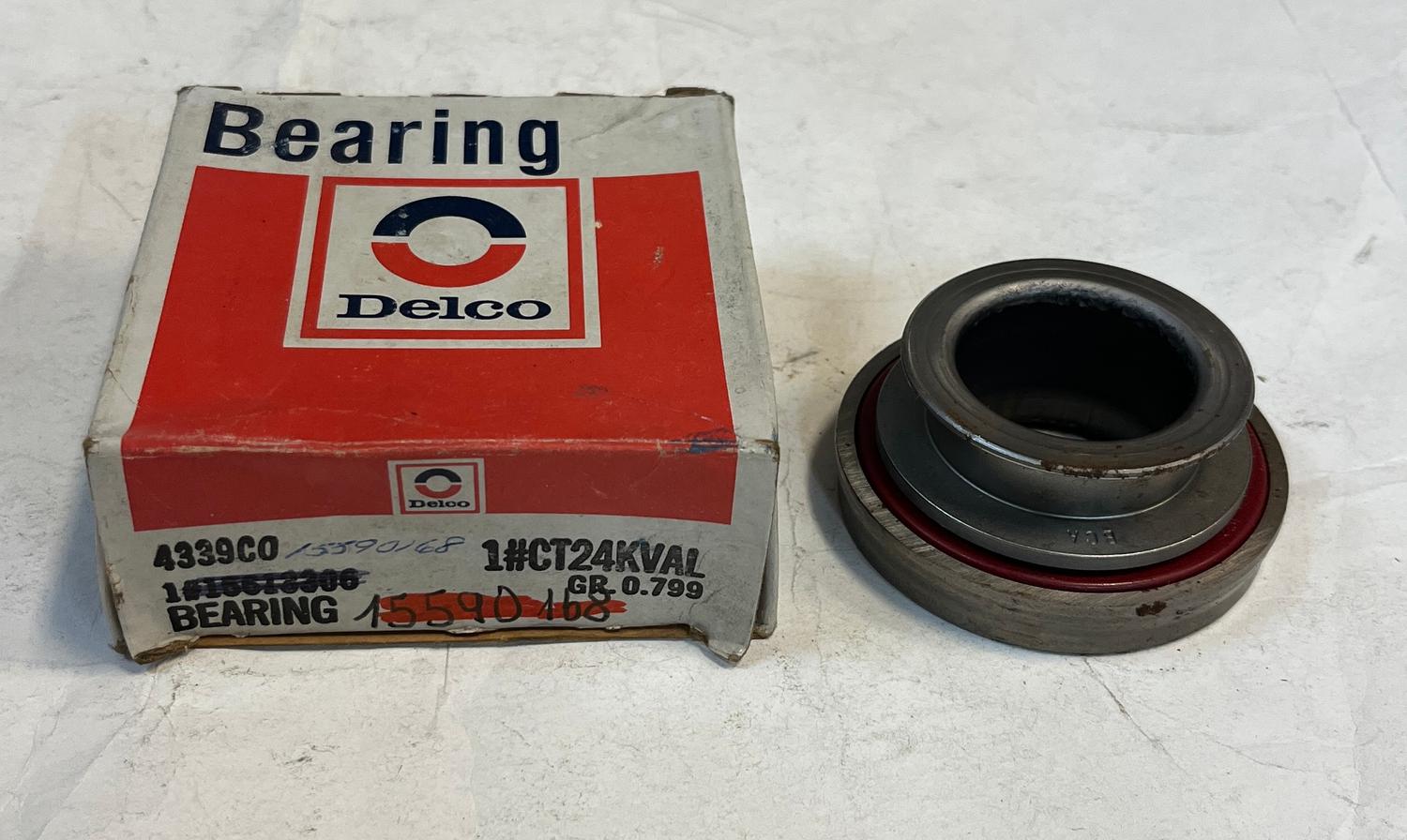

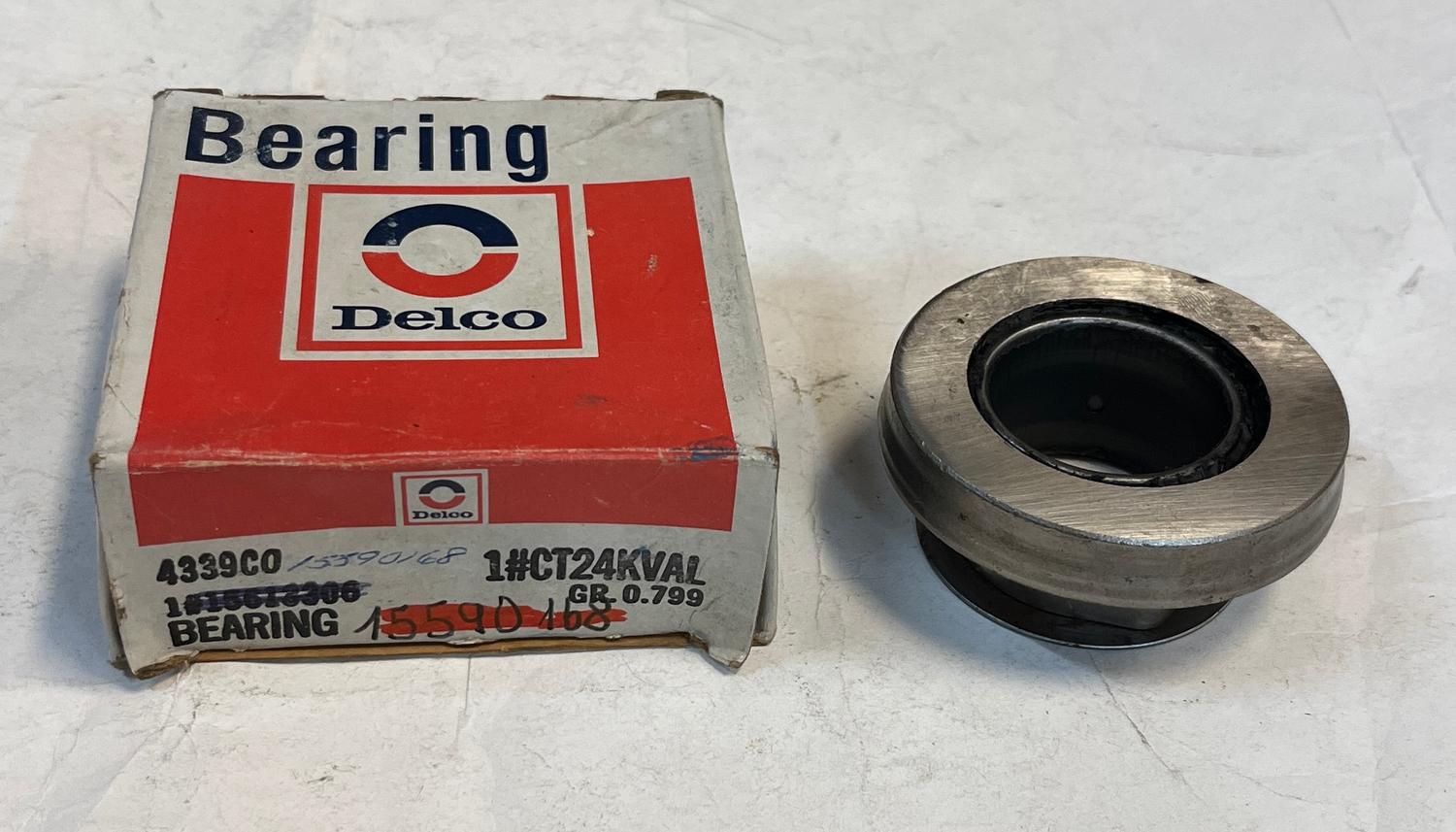

Urtrampningslager Chev Pontiac GMC 1982-95, Delco CT24KVAL 15613306 4339C0
Nytt från gammalt lager
GM GENUINE CT24KVAL Specifications
Clutch Fork To Face (IN) 0.65
Clutch Fork To Face (MM) 16.5
Cone Inside Diameter (IN) 1.4
Cone Inside Diameter (MM) 34.8
Cone Outside Diameter (IN) 2.2
Cone Outside Diameter (MM) 55.9
Fork Groove Width (IN) 0.48
Fork Groove Width (MM) 12.19
Groove Width (IN) 1.63
Groove Width (MM) 41.40
Inside Diameter (IN) 1.37
Inside Diameter (MM) 34.80
Material Metal
Mounting Seat Maximum Outside Diameter (IN) 2.77
Mounting Seat Maximum Outside Diameter (MM) 70.36
Mounting Seat Minimum Outside Diameter (IN) 2.60
Mounting Seat Minimum Outside Diameter (MM) 66.0
Mounting Tabs Attached No
Outside Diameter (IN) 2.77
Outside Diameter (MM) 70.36
Race Included Yes
Race Inside Diameter (IN) 1.74
Race Inside Diameter (MM) 44.2
Sealed Yes
Self Aligning Yes
CHEVROLET ASTRO 1987-1989
CHEVROLET BLAZER 1987-1995
CHEVROLET C10 PICKUP 1985-1986
CHEVROLET C1500 PICKUP 1988-1995
CHEVROLET C20 PICKUP 1985-1986
CHEVROLET C2500 PICKUP 1988-1995
CHEVROLET C30 PICKUP 1985-1986
CHEVROLET C3500 PICKUP 1988-1995
CHEVROLET CAMARO 1985-1993
CHEVROLET CORVETTE 1985-1988
CHEVROLET K10 PICKUP 1985
CHEVROLET K1500 PICKUP 1988-1995
CHEVROLET K20 PICKUP 1985-1986
CHEVROLET K2500 PICKUP 1988-1995
CHEVROLET K30 PICKUP 1985-1986
CHEVROLET K3500 PICKUP 1988-1994
CHEVROLET K5 BLAZER 1985
CHEVROLET P20 1982-1983
CHEVROLET P30 1983-1995
CHEVROLET R10 PICKUP 1987
CHEVROLET R20 PICKUP 1987-1988
CHEVROLET R20 SUBURBAN 1987
CHEVROLET R2500 PICKUP 1989
CHEVROLET R30 PICKUP 1987-1988
CHEVROLET R3500 PICKUP 1989-1991
CHEVROLET S10 BLAZER 1984-1992
CHEVROLET S10 PICKUP 1985-1995
CHEVROLET TAHOE 1995
CHEVROLET V10 PICKUP 1987
CHEVROLET V10 SUBURBAN 1988
CHEVROLET V20 SUBURBAN 1987-1988
CHEVROLET V30 PIC
