Beskrivning
Type |

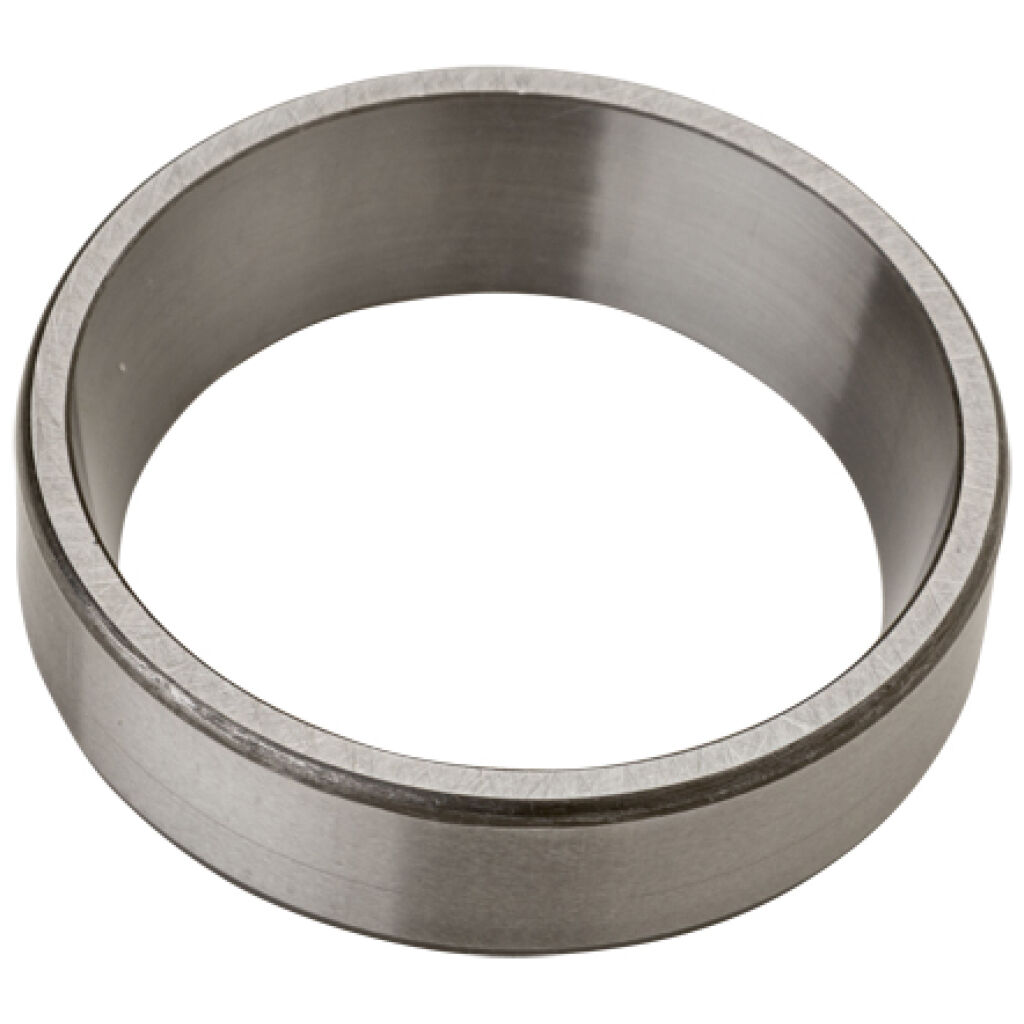

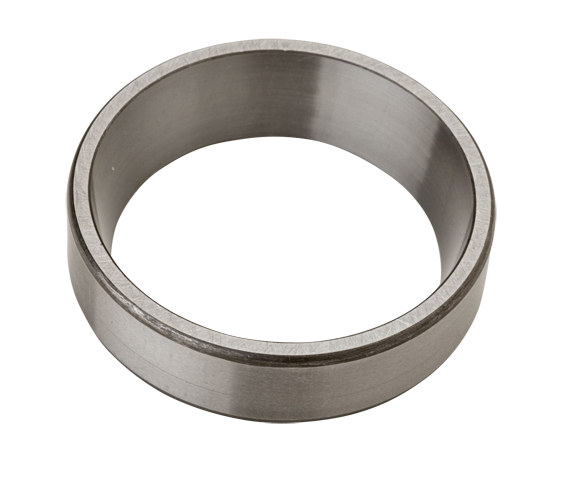

Bearing Cup |
Material |
Case Carburized Steel |
Weight |
0.185 lb0.084 kg |
Dimensional Specifications
 Cup for Tapered Roller Bearing – Inch Series and J Series – Dimensions |
|
D |
1.9380 in49.225 mm |
Wo |
0.6875 in17.463 mm |
W |
0.9063 in23.020 mm |
r |
0.0600 in1.500 mm |
X |
1.75 in44.0 mm |
Z |
1.63 in41.5 mm |
