FOUR SEASONS 55786 AC KYLSLANG CHEVROLET GMC 1990-93

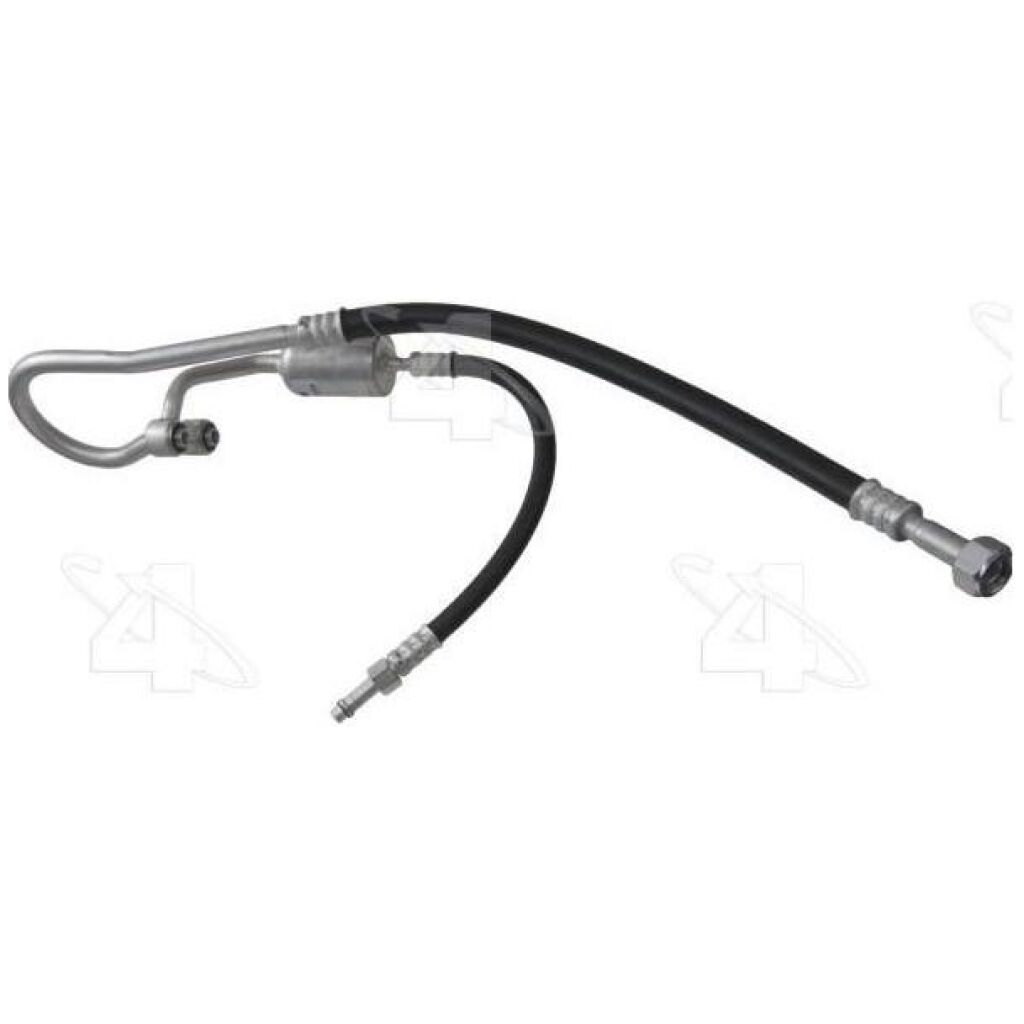

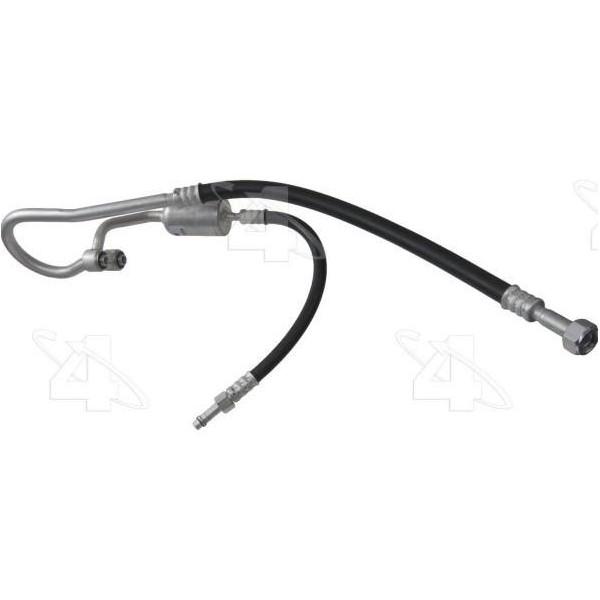

Hose Assembly
As a manufacturer in hose assemblies, Four Seasons' capabilities extend past just putting a part in a box. Through modern manufacturing and advanced production equipment, they meet both customer's quality and delivery expectations. Each unit is 100% inspected to ensure bend pipe consistency is maintained through a highly precise CNC bending machine.
Hose assemblies play an important role in A/C system performance by carrying refrigerant and lubrication from one component to another. Poor manufacturing could lead to restricted refrigerant and oil flow to the compressor, resulting in catastrophic system failure.
Features:
Barrier Hose: Meets OE specifications
Tubing: Meets OE wall thickness and specifications fitting tube design
Pad Block Fittings: Designed to match OE
Orifice Tube: Meets OE specification in fit, form, design and function
Welds and Connections: Same design as OE with no refrigerant flow restrictions
Ferrule Crimp: Exceeds OE tensile test requirements
Muffler: Wall thickness meets OE specification, burst pressure exceeded OE requirements
O-Ring & Seals: Includes all necessary o-ring, seals including charge port fittings
Brackets: All fixed brackets are included on hose assembly
System Flushing
Refrigerant Type R-134A
Discharge End Style UNF O-Ring
Material Aluminum / Rubber
Muffler? w/ Muffler
Gasket / Seals? Included
Switch Port? No
O-Ring B Number/Desc [24612] / Green O-Ring
Suction End Style UNF O-Ring
O-Rings Included? Included
Discharge End Type Female O Ring
Type Discharge & Suction Line
Service Port? w/o Service Port
Suction End Type Female O Ring
Manifold? Yes
O-Ring A Number/Desc [24608] / Green O-Ring
O.E. Replacement? Yes
Bracket? w/o Bracket
O-Ring B Quantity 1
O-Ring A Quantity 1
Switch Included? w/o Switch Port
Alternate/OEM Part Number(s): 15650660, 15954700, 15974700, 55786
CHEVROLET ASTRO 1990-1993
GMC SAFARI 1990-1993
