Beskrivning

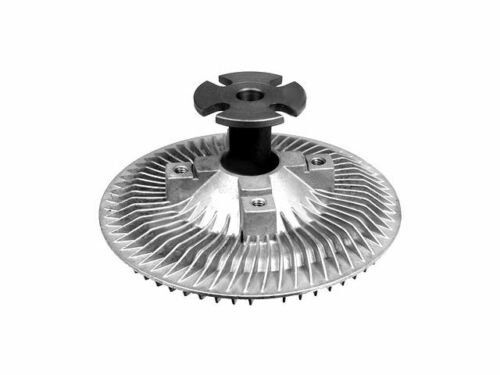

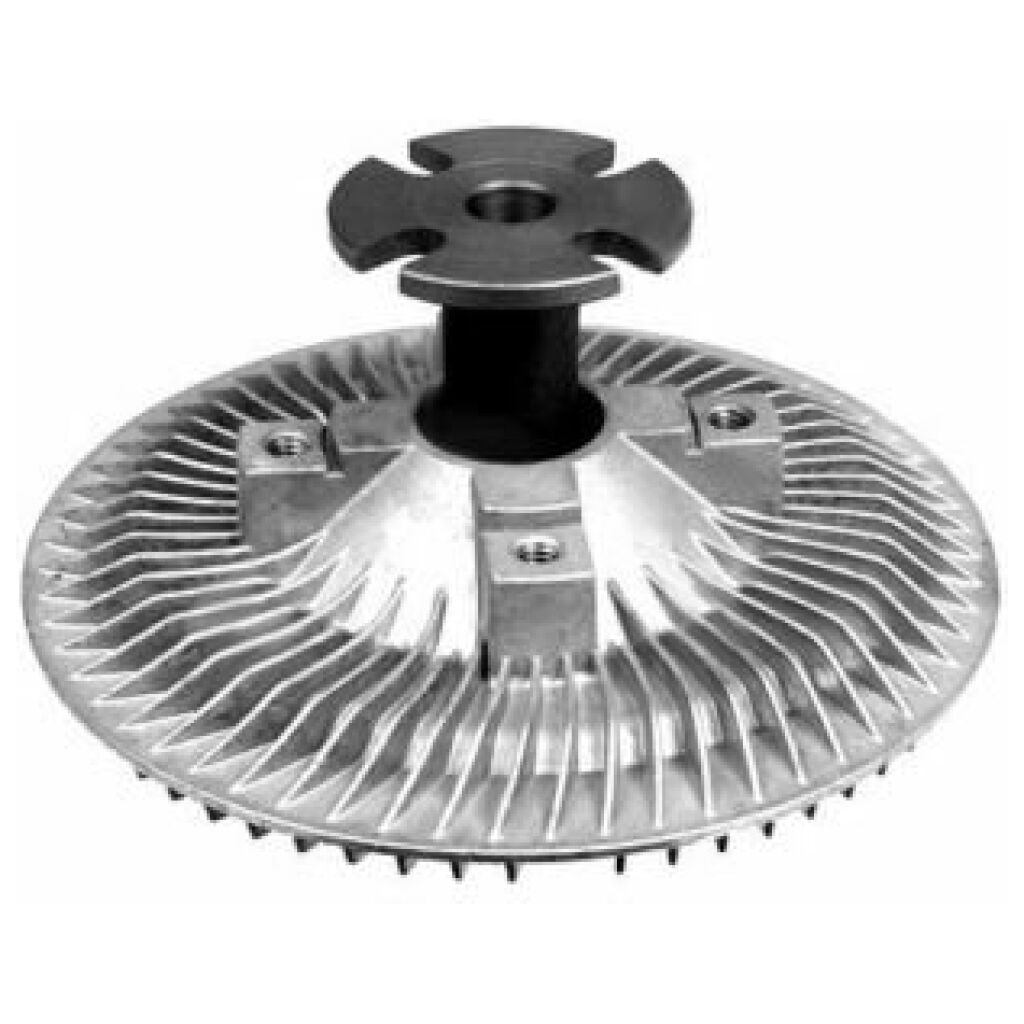

FLÄKTKOPPLING TERMISK
FOUR SEASONS 36928
ERS HAYDEN 2705
NY FRÅN GAMMALT LAGER
AMERICAN MOTORS 1965-1984
BUICK 1969-1989
CADILLAC 1983-1985
CHECKER 1969-1976
CHEVROLET 1957-1988
DODGE 1975-1978
GMC 1962-1988
INTERNATIONAL 1958-1975
JEEP 1972-1986
OLDSMOBILE 1960-1988
PONTIAC 1966-1987
HAYDEN 2705 Specifications
Bolt Quantity 4
Bolt Thread 5/16-18 Hole
Clutch Maximum Diameter (IN) 7.2
Clutch Type B – Non-Thermal & Std Thermal
Color Raw Aluminum in Color
Description Fan Clutches
Drawing Type B
Duty Rating Standard
Electronic Clutch? Non Electronic
Fan Bolt Circle (IN) 3.25
Fan Mount Dia. (IN) 2.62
Fan Mount Dia. (MM) 66.6
Fan Mount Height (MM) 38.8
Material Aluminum
Meets / Exceeds OEM? Yes
Mount Dia. (IN) 2.6
Mount Dia. (MM) 66
Mounting Hardware? Not Included
Mounting Hole Quantity 4
Mounting Type Flange
New or Reman New
O.E. Replacement? Yes
Overall Dia. (MM) 182.9
Overall Height (IN) 3.11
Overall Height (MM) 79
Performance Rated? Yes
Pilot Depth (IN) 1.03
Pilot Depth (MM) 26.2
Pilot Dia. (IN) 0.63
Rotation Std
Style STANDARD DUTY
Type Thermal
OEM / Interchange Numbers: 12306610, 1236787, 1244633, 1245632, 1254857, 1357707, 14007823, 14009083, 14010295, 14015330, 14037607, 14077971, 14094799, 1482914, 1625161, 19189678, 22007562, 22007564, 22007572, 22007636, 22007639, 22007640, 22007818, 22007979, 22007985, 22007990, 22007997, 22008428, 22008434, 22008436, 22008446, 22008464, 22008466, 22008474, 22008476, 22008504, 22008506, 22008508, 22008518, 22008520, 22008524, 22008534, 22008536, 22008544, 22008934, 22008936, 22009051, 22016528, 22036120, 22049774, 22049776, 22049785, 22050648, 22050649, 22050656, 22050657, 22050662, 22050663, 22050671, 22050672, 22050673, 22050676, 22050677, 22062564, 22073422, 22073426, 22073433, 2536538, 2536677, 2658456, 2806070, 2863233, 2863259, 2863260, 2863261, 3173394, 3231995, 3236603, 3237559, 3237560, 3237591, 3238907, 3239377, 3239378, 3241856, 3241857, 333893, 342753, 342754, 343719, 343720, 343722, 343723, 343725, 343726, 343727, 3462105, 3462107, 3462112, 3462140, 3462172, 3462179, 353201, 3769613, 3769614, 3769616, 3883158, 3927783, 3927784, 3946804, 3982940, 3982941, 3991426, 3991430, 401798, 403982, 403983, 408228, 460149, 460150, 460151, 460760, 461303, 465887, 465990, 466310, 472807, 473341, 477947, 477957, 4939833, 4939900, 4939915, 4939983, 4949706, 4949861, 4949864, 4964309, 4974166, 4974367, 4974462, 4974900, 4974946, 4993439, 4993440, 499957, 5354432, 5362722, 547186, 554243, 557376, 559729, 88961759, 89000170, 994277, 998761, J0998761, J5354432, J5362722
FINNS ÄVEN SOM BESTÄLLNINGSVARA
