Beskrivning

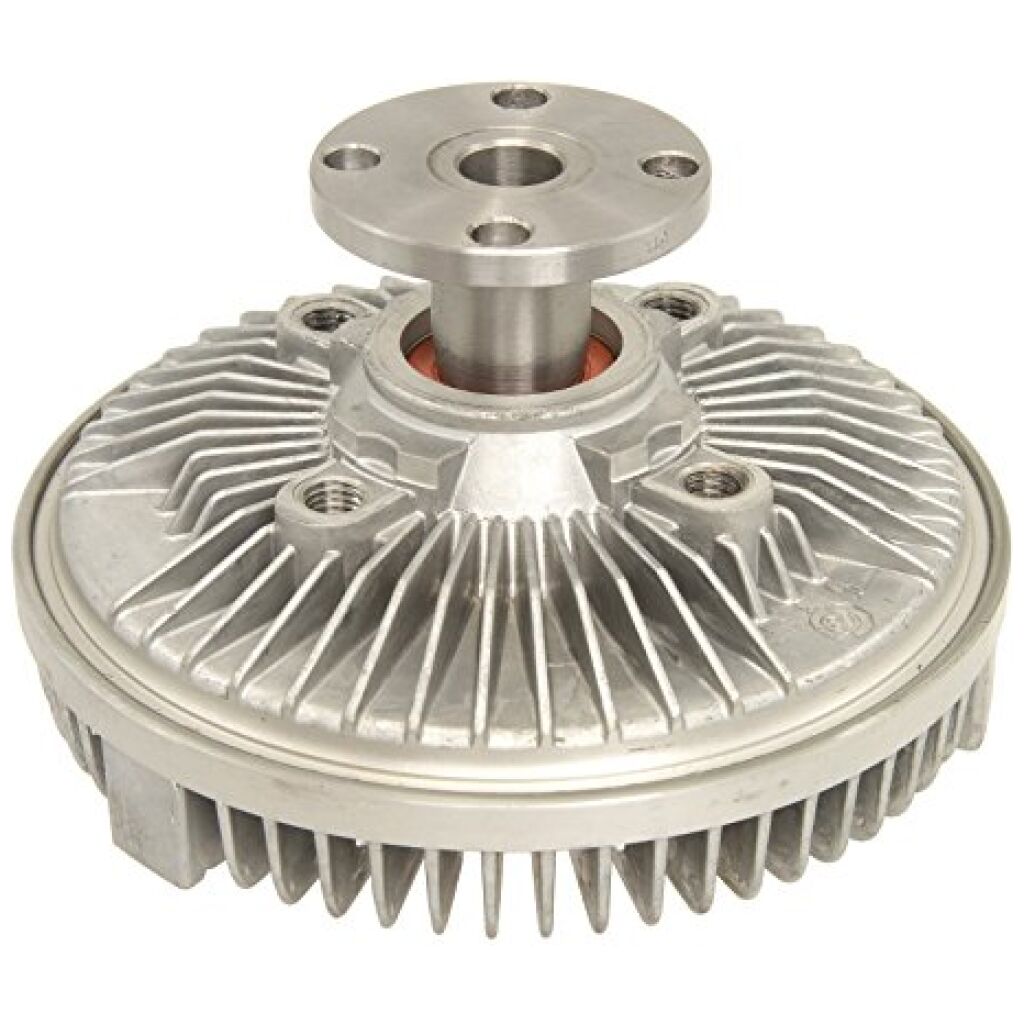

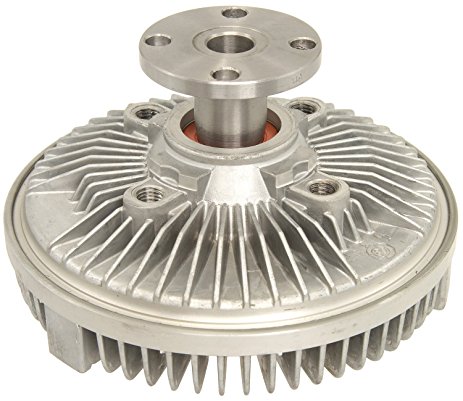

Fläktkoppling
Hayden #2784
NY FRÅN GAMMALT LAGER
| BUICK | ROADMASTER | 1991-1993 |
| CADILLAC | BROUGHAM | 1990-1992 |
| CADILLAC | DEVILLE | 1991-1992 |
| CADILLAC | FLEETWOOD | 1993 |
| CHEVROLET | ASTRO | 1987-1995 |
| CHEVROLET | BLAZER | 1988-1995 |
| CHEVROLET | C1500 PICKUP | 1988-1995 |
| CHEVROLET | C1500 SUBURBAN | 1992-1995 |
| CHEVROLET | C2500 PICKUP | 1988-2000 |
| CHEVROLET | C2500 SUBURBAN | 1992-1999 |
| CHEVROLET | C35 | 1988-1995 |
| CHEVROLET | C3500 PICKUP | 1988-2000 |
| CHEVROLET | CAPRICE | 1989-1990 |
| CHEVROLET | EXPRESS 3500 | 1996-2000 |
| CHEVROLET | G10 | 1987-1995 |
| CHEVROLET | G20 | 1987-1995 |
| CHEVROLET | G30 | 1987-1996 |
| CHEVROLET | K1500 PICKUP | 1988-1995 |
| CHEVROLET | K1500 SUBURBAN | 1992-1995 |
| CHEVROLET | K2500 PICKUP | 1988-2000 |
| CHEVROLET | K2500 SUBURBAN | 1992-1999 |
| CHEVROLET | K3500 PICKUP | 1988-2000 |
| CHEVROLET | P30 | 1996-1999 |
| CHEVROLET | R10 SUBURBAN | 1988 |
| CHEVROLET | R1500 SUBURBAN | 1989-1991 |
| CHEVROLET | R20 PICKUP | 1988 |
| CHEVROLET | R20 SUBURBAN | 1988 |
| CHEVROLET | R25 | 1995 |
| CHEVROLET | R2500 PICKUP | 1989 |
| CHEVROLET | R2500 SUBURBAN | 1989-1991 |
| CHEVROLET | R30 PICKUP | 1988 |
| CHEVROLET | R3500 PICKUP | 1989-1991 |
| CHEVROLET | S10 BLAZER | 1988-1994 |
| CHEVROLET | S10 PICKUP | 1988-1995 |
| CHEVROLET | TAHOE | 1995 |
| CHEVROLET | V10 SUBURBAN | 1988 |
| CHEVROLET | V1500 SUBURBAN | 1989-1991 |
| CHEVROLET | V20 SUBURBAN | 1988 |
| CHEVROLET | V2500 SUBURBAN | 1989-1991 |
| CHEVROLET | V30 PICKUP | 1988 |
| CHEVROLET | V3500 PICKUP | 1989-1991 |
| GMC | C1500 PICKUP | 1988-1995 |
| GMC | C1500 SUBURBAN | 1992-1995 |
| GMC | C2500 PICKUP | 1988-2000 |
| GMC | C2500 SUBURBAN | 1992-1999 |
| GMC | C3500 PICKUP | 1988-2000 |
| GMC | G1500 | 1987-1995 |
| GMC | G2500 | 1987-1995 |
| GMC | G3500 | 1987-1996 |
| GMC | JIMMY | 1988-1995 |
| GMC | K1500 PICKUP | 1988-1995 |
| GMC | K1500 SUBURBAN | 1992-1995 |
| GMC | K2500 PICKUP | 1988-2000 |
| GMC | K2500 SUBURBAN | 1992-1999 |
| GMC | K3500 | 1988-2000 |
| GMC | P3500 | 1989-1999 |
| GMC | R1500 SUBURBAN | 1988-1991 |
| GMC | R2500 PICKUP | 1988-1989 |
| GMC | R2500 SUBURBAN | 1988-1991 |
| GMC | R3500 PICKUP | 1988-1991 |
| GMC | S15 JIMMY | 1988-1991 |
| GMC | S15 PICKUP | 1988-1990 |
| GMC | SAFARI | 1987-1995 |
| GMC | SAVANA 3500 | 1996-2000 |
| GMC | SONOMA | 1991-1995 |
| GMC | SYCLONE | 1991 |
| GMC | TYPHOON | 1992-1993 |
| GMC | V1500 SUBURBAN | 1988-1991 |
| GMC | V2500 SUBURBAN | 1988-1991 |
| GMC | V3500 PICKUP | 1988-1991 |
| GMC | YUKON | 1992-1995 |
| OLDSMOBILE | BRAVADA | 1991-1994 |
| Bolt Quantity | 4 |
| Bolt Thread | M10 x 1.5 Hole |
| Clutch Type | D – Severe Duty and Truck Fan Drive |
| Color | Raw Aluminum in Color |
| Description | Fan Clutches |
| Drawing Type | D |
| Duty Rating | Severe |
| Electronic Clutch? | Non Electronic |
| Fan Bolt Circle IN | 3.250 |
| Fan Bolt Circle MM | 82.6 |
| Fan Mount Dia. IN | 2.52 |
| Fan Mount Dia. MM | 63.9 |
| Fan Mount Height IN | 1.63 |
| Fan Mount Height MM | 41.3 |
| Material | Aluminum |
| Meets / Exceeds OEM? | Yes |
| Mount Dia. IN | 2.46 |
| Mount Dia. MM | 62 |
| Mount Hole Qty | 4 |
| Mount Type | Flange |
| Mounting Hardware? | Not Included |
| New or Reman | New |
| O.E. Replacement? | Yes |
| Overall Dia. IN | 6.450 |
| Overall Dia. MM | 163.8 |
| Overall Height IN | 3.65625 |
| Overall Height MM | 92.9 |
| Performance Rated? | Yes |
| Pilot Depth IN | 0.625 |
| Pilot Depth MM | 16 |
| Pilot Dia. IN | 0.63 |
| Rotation | REV |
| Style | Severe Duty |
| Type | Thermal |
| Wire Guage | Uses Original Equipment Connector |
| Wire Quantity | Uses Original Equipment Connector |
OEM / Interchange Numbers: 10197798, 10197799, 10225362, 12383420, 12529773, 15022301, 15548577, 15590791, 15603080, 15603748, 15604541, 15612674, 15629473, 15631328, 15640021, 15640469, 15659163, 15668489, 15671896, 15671897, 15671898, 15671901, 15672779, 15674644, 15677098, 15677100, 15699657, 15709933, 15718191, 15969544, 15977342, 15977563, 19150657, 22088614, 22088615, 22091718, 22091719, 22091720, 22092681, 22097578, 22103707, 22120887, 22120889, 22124521, 22124525, 22124540, 22149818
FINNS ÄVEN SOM BESTÄLLNINGSVARA
